charge controllers ms-sg-4 , mppt , for solar panels , a charge controller is used when charging a battery ,
ms-gc-4 , ms-sq4-22 and msc-4q4. charge controllers ms-sg-4 from sunergy
Ideal for both commercial and residential usage, a single module, compact solar charge controller for modest systems.
100% solid state, epoxy-encased, and designed with a 25% overload rating (no de-rating required).
Longer battery life because to temperature correction, series design PWM charging (instead of shunt), and reduced self-consumption.
• Simple installation – watertight connections are made between the solar module and battery using outdoor-rated connecting cables.
Certifications
• CE, RoHS and REACH Compliant
• Manufactured in a Certified ISO 9001 Facility

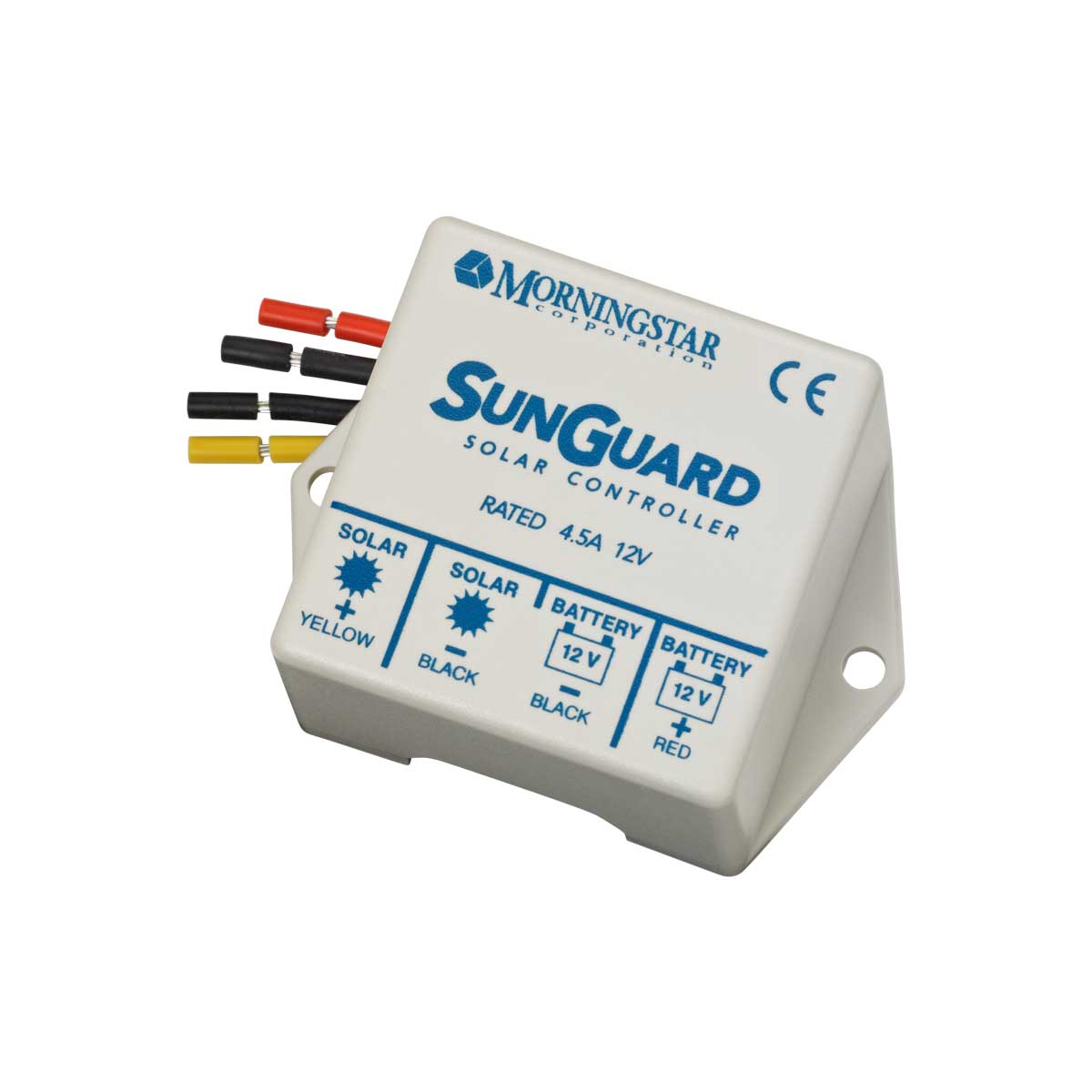

The best single module controller in the world is SunGuard SG-4 by Morningstar. For an affordable controller for small PV systems, we’ve integrated all the benefits of our SunSaver charging circuit with less cost packaging. The most sophisticated tiny, cost-effective solar charge controller on the market right now is Morningstar’s SunGuard.
Outstanding Reliability
Battery Charging using PWM
Consistently Excellent Value
Features:
programs with ISO 9002 standards series design rather than shunt a solid state only True PWM duty cycle, 0 to 100% 60 mV setpoint accuracy Temperature adjustment With a reference temperature of 25°C, a sensor determines the ambient temperature and adjusts the constant voltage setpoint by -28 mV per degree. The SunGuard and battery should be in a temperature environment that is comparable for this to operate. with a 25% overload rating No need to be derate 1500 W transorbs to guard against lightning 6 mA is self-consumption. Completely enclosed in an impact-resistant, ABS plastic epoxy potting box. Outdoor-rated connection cables made of hypalon
